SCADA Pro Steel

Analysis and design of steel structures and connections.

Detailed Description

--

SCADA Pro Steel  is a complete and comprehensive application for static and dynamic analysis and design of Steel structures according to Eurocodes and most European National Annexes.

It consists of the basic suite (SCADA Pro Analysis) and the additional tool (add-on) about the design of steel structures and steel connections according to EC3.

It also includes, the generation of construction drawings, detailing of connections and the bill of materials as well as, the production of the full report of the project.

Interface

New interface for even more flexibility and productivity

Invest and learn a single application that will meet all your needs for the analysis and design of any structural project with different materials.

SCADA Pro, based on Microsoft Ribbon technology, offers a unified, innovative and beautiful user interface, where it is easier to use more commands in a fully customizable environment.

Ribbons allow for visual layout and grouping of the commands in order to enable the user to discover and use the application’s tools easier, faster, and more efficiently.

On the left side of the interface, all the structure entities are shown in a tree form, categorized either per storey (level) or for the entire structure. This categorization helps in tracking any member of the structure by just selecting it on the tree which displays it in different color on the structural model.

The member’s storey is, then, isolated, and on the right side of the interface its properties are shown, with live editing capability. This process can be applied interactively, that is the member can be selected graphically on the structural model and this member’s properties will appear on the right side of the interface.

Additionally, a list of optional commands can be applied on each tree member selected. The optional context sensitive menu appears when right clicking, to help the user find features fast.

Modelling

Automatic recognition of physical cross-sections from any architectural drawing in DXF or DWG form

Automatic recognition of structural elements and creation of the structure from DXF, DWG file. Minimizing time for data input.

SCADA Pro, beautiful and productive interface offers automatic recognition of physical cross-sections from any architectural drawing in DXF or DWG form.

Recognition and modelling using the cross-sections of the SCADA Pro library can be applied selectively or automatically per storey, per structural member (Columns, Beams, Strip Foundations, Footings) or for the entire structure.

Furthermore, the structure’s slabs are identified automatically, as well as all cantilevers drawn in simple lines.

Design with cutting edge BIM technology (Building Information Modeling Technology). Easy and full communication for the architect, civil engineer and builder.

SCADA Pro as well as Revit Structure are based on BIM technology, which not only allows the easy bidirectional communication between the applications, but also helps the engineer to input, visualize, and assess projects faster and more efficiently.

3D objects, such as walls, doors, windows, structural elements are stored in SCADA Pro’s internal database, including information about their geometry, physical structure, type of material, cost, physical limitations, etc.

A change anywhere is a change everywhere.

Some of the multiple benefits of SCADA Pro BIM technology:

  • Time savings
  • Error minimization
  • Complexity reduction
  • Improved collaboration among design teams
  • Bidirectional improvement of communication with other applications

Full compatibility between AutoCAD Revit Structure Suite and SCADA Pro

AutoCAD Revit Structure Suite includes a complete set of applications for the structural model generation.

Bidirectional communication with SCADA Pro offers an easy way to import, through ifc files, 3D architectural models ready for analysis.

All structural members, columns, beams etc. as well as the loads and steel connections, automatically and accurately are converted to their respective structural elements of SCADA Pro.

Bidirectional communication between architectural and structural models ensures time savings and cost reduction.

SCADA Pro has been certified by Autodesk for the automatic, bidirectional communication interface with Revit Structure.

3D FEM

New powerful mesh generator of 3D surface finite elements

A new mesh generator of 3D surface finite elements is included in SCADA Pro.

Surfaces of any shape may be modelled and the meshing is completed regardless the pattern of holes or concentration points on a surface.

The mesh generation is automatic even when both surface and linear elements are present (nodes of neighboring linear and surface elements are automatically merged together).

The ability of inserting a point for adaptation of the mesh around it is also available.

The program also allows the insertion of a hole in an already meshed surface.

Any type of material may be attributed to a mesh with no problem.

Contours concerning the stress resultants, the strains or the computed reinforcement percentage “As” may be drawn on the produced mesh.

Loads

Direct load definition on members using any load type desired

Input loads for the structure: Direct load definition on members using any load type desired.

SCADA Pro gives the user the option to input graphically, on members, the loads desired.

All load types are supported, e.g. uniformly distributed forces, concentrated forces, nodal forces, torsional moments, settlement, thermal actions etc.

Loading and combinations required by EC 0 are automatically calculated, with full editing options for the user.

Automatic generation of wind and snow loads according to EC1, as well as automatic attribution to the members with respective generation of load cases, ready for analysis.

Input of slabs and slab loads

The identifications of the slabs in SCADA Pro is accomplished automatically by the automatic assignment of the support conditions.

Slabs of any shape and any type are considered (Conventional, Zoellner, Sandwich).

There is also available the feature of converting a conventional slab to a slab simulated with finite surface elements.

The minimum thickness of the slab is calculated automatically applying the slenderness control.

The loads on the slabs can be imported in total for all slabs or selectively with instant processing and modification.

The loads can be imported as linear or in segments.

The assignment of loads is done with a single click on the columns and the footing beams with corresponding appearance of leakage lines and influence surfaces per structural member.

The loads on members are calculated through Marcus coefficient method according to the slab’s support conditions.

Analysis Types

Fast and reliable solvers so that the user can rely on

SCADA Pro incorporates more than 30 years of know-how from ACE-Hellas advanced research and development team. It utilizes the most powerful solvers for all analysis methods and is using advanced parallel processing components to minimize execution time.

The following analysis methods are included:

Linear Simplified Spectral Method (Equivalent Spectral Method).

The linear simplified spectral method refers to the calculation of the displacements, deformations and the internal forces of the structure under static loads.

The calculation of the response is carried out by solving the linear system of equations which describes the model of the structure.

The externally imposed loads can be point on the nodes or distributed along the members, while the self-weight of the structure is taken into account.

The results of the linear static method can be used for the design of the structure, using the parameters provided by each regulation.

Linear Dynamic Spectral Method.

The linear dynamic spectral method is a simplified approximate analysis method, which uses superposition of the eigenmodes for the estimation of the maximum response of the structure, under earthquake excitation.

Using this methodology the complete calculation of the response time histories, required in dynamic analyses, is avoided.

Instead, the spectral values of the response which correspond to each eigenmode are calculated.

The value of the maximum response is next estimated using statistical analysis, since the maximum response of each eigenmode does not occur on the same time, but also the exact time is not known.

The great advantage of the spectral dynamic method is the fact that it requires a reduced amount of eigenmodes for the estimation of the structure’s response and therefore reduced computational cost.

Linear Dynamic Time History Analysis

Time history dynamic analysis refers to the calculation of the structure’s response under a predefined external load which varies in time (earthquake excitation).

Time history dynamic analysis is divided into linear and nonlinear.

It is considered as linear when all the structural members behave elastically and therefore the structure responds linearly to the imposed loads.

For the calculation of the response, the structural equations of motion have to be solved.

This can be done in two ways: modal analysis or direct integration of the equations of motion.

As far as the modal analysis is concerned, a reduced amount of eigenmodes that contribute to the response are chosen.

Normally, a quite small amount of eigenmodes with respect to the total degrees of freedom of the model, can lead to a satisfactory estimation of the time history response.

This leads to an important decrease of the computational cost.

As far as the direct integration method is concerned, the full mass, damping and stiffness matrices are used at the equations of motion, which are numerically integrated with respect to time.

The computational cost increases, but the solution obtained is exact and not approximate.

Non-Linear Dynamic Time History Analysis.

Non-linear dynamic time history analysis is the most reliable methodology of the seismic behavior of structures.

For this analysis, models of the non-linear behavior of the structure’s materials are used, in order to properly simulate their fully inelastic and hysteretic behavior.

In order to estimate the structure’s response under seismic excitation, numerical integration of the equations of motion is required in time domain.

This type of analysis has high computational cost, but it is the only one that has the ability of estimating the inelastic deformations and internal forces under predefined earthquake loadings.

Due to its high accuracy, non-linear dynamic analysis can be used at every structure without limitations. But the response of the structure can present high sensitivity at the characteristics of each Imposed earthquake excitation.

For this reason it is recommended to repeat the analysis using more than one seismic events.

EC8 recommends that if less than seven seismic events have been analyzed, the user has to use the unfavorable scenario for the design of the structure, while in different cases the mean values of the response can be taken into account.

Multithreading CPU – GPU accelerated analysis

Analysis time of large models can take up to many hours or even days using traditional finite element and linear system technics

High Performance Computing (HPC) features can be used in order to reduce run times and efficiently solve large problems fast.

Analysis on multicore CPU or GPU

Run time can be reduced significantly by taking advantage of parallel solvers which run on multicore CPUs (Shared Memory Parallelism).

The solver divides the work into parts and each core (thread) takes over only one part, therefore solving the problem in parallel significantly faster.

For even better results, the graphics processor of a system can be used (such as an NVidia or AMD graphics card).

The main difference is that in multicore CPUs there are typically 2-8 threads, whereas in GPUs there are a few hundreds or even thousands of parallel threads.

This vast parallelism (fine-grained) leads to even lower analysis times for very large models.

Analysis - Seismic design – Checks (EC8)

Full customization for repetitive analyses and result optimization. Try safely!

All the required by EC8 checks and the corresponding local regulations are presented in a way that is simple with complete oversight so that the user has a full overview of the entire structure.

In SCADA Pro the user can choose the desired analysis method and regulations, and the program applies automatically the predefined parameters required by the regulations.

Furthermore, the ability to fully customize the environment, allows the user to try out solutions and validate the effects of each parameter based on the final results.

Of course, all the solutions produced, through the different scenarios provided by the software, are saved and are available at any time, for direct comparison.

Execution of multiple analyses with a single click. Versatility and infinite options for the user.

SCADA Pro provides the user with the option to choose the desired analysis method in order to obtain the results fast and easy. It also provides the option to combine internal force values from different analysis methods!

Of course, all the load combinations are produced automatically, while allowing for editing whenever and however the user desires!

Results – Post Processing

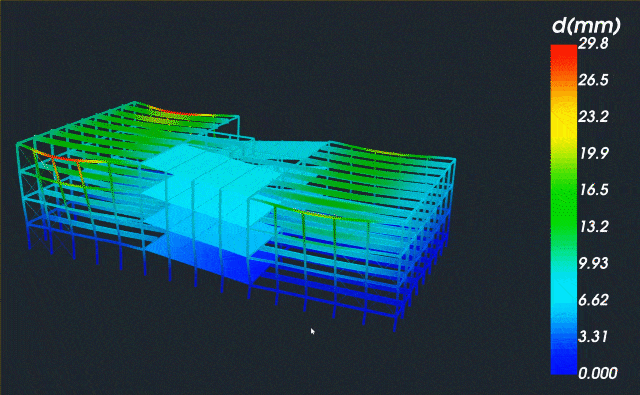

Three – dimensional visualization of the internal forces and deformed shape of the structure so that the user can have full oversight anytime

The results section, through a rich and fluent graphical interface, provides the user all the tools to view the structure, colored diagrams from any internal force and loading, load combination or envelope.

All the user have to do is to choose the view scale and locate fast and easily the members developing the maximum forces or deformations.

The user can also view the deformed structure with motion in space for any static or dynamic loading and eigenmode.

Furthermore, contour plots of the internal forces, deformations and steel reinforcement of surface finite elements are presented.

Design (EC3 Part 1)

Design of steel structures and their connections according to EC3

SCADA Pro performs all the checks referred in EC3 for the design of steel structures. Different types of steel structures may be modelled such as industrial structures, trusses, canopies etc. The cross-section classification is automatically performed and the resistance checks are performed for all cases:

  • Tension,
  • Compression,
  • Bending,
  • Shear,
  • Torsion,
  • Bending and shear combination,
  • Bending and axial force combination,
  • Bending, axial force and shear combination.

A stability check is also carried out for the cases of:

  • Buckling under axial compression,
  • Lateral torsional buckling,

where several functionalities are utilized, such as:

  • Critical length definition either as a single value or as a coefficient,
  • Different type of constraints at the member ends,
  • Imposing constraints at other points of the member apart from its ends.

The results can be presented either in summary format for a quick review, or in detailed format for a more comprehensive assessment.

The design and checking of the foundation members is also included. It concerns spread footings, footing connection beams, strip foundations and raft foundations. The steel members are also checked at their connection to the foundation.

Steel connections (EC3 Part 8)

Automatic execution of all the necessary checks

Complete library for all the types of steel connections. Automatic execution of all the necessary checks.

SCADA Pro presents a rich library with more than 130 types of steel connections (welded or bolted), covering all the cases mentioned in EC3 – part 8. The user also has the option to model a steel connection using 3D surface finite elements.

A three-dimensional, scaled visualization of the connection’s detailing (bolts, end-plate) is created.

The checks may be carried out either by using the stress resultants of a load case or direct values filled in by the user.

A connection type may be saved for later use. Members with similar type of connection may be grouped together.

The detailing of a connection is easily drawn and presented (plan, elevation or section view) and can be exported and saved in a DWG file format.

Production of structural drawings - Layout and Detailing of Steel Connections (EC3)

Powerful editor for the automatic creation of structural drawings

SCADA Pro gives you the ability to create automatically the 3D dwg file of your project.

It also provides a rich toolbox that contains ready-to-use symbols, annotations and sketching details, as well as special commands.

Automatic production of the drawing plan, elevation and section view of a steel connection is also available.

Bill of materials

Accurate estimation of the bill of materials

SCADA Pro produces the quantities of all the materials of a project in a well-organized tabular form.

For steel structures, the bill of materials is available per floor, per member’s section or per type of structural member (columns, beams, girders, purlins, bracing etc.).

Report of the project

User friendly interface for the creation and editing of the report

In SCADA Pro the user simply selects the sections to be included in the report of the project.

Simple tools allow the user to edit the report header and footer position chapters and create automatically the table of contents.

Beams’ results also include envelope diagrams of internal forces.

The report may be previewed before the user can save it for further editing in one of the following file formats: RTF, PDF, HTML, PPTX, XLSX.

Accompanying drawings and other details are also available and included for better reporting.
