21 / 66
Software Verification Examples for SCADA Pro
21

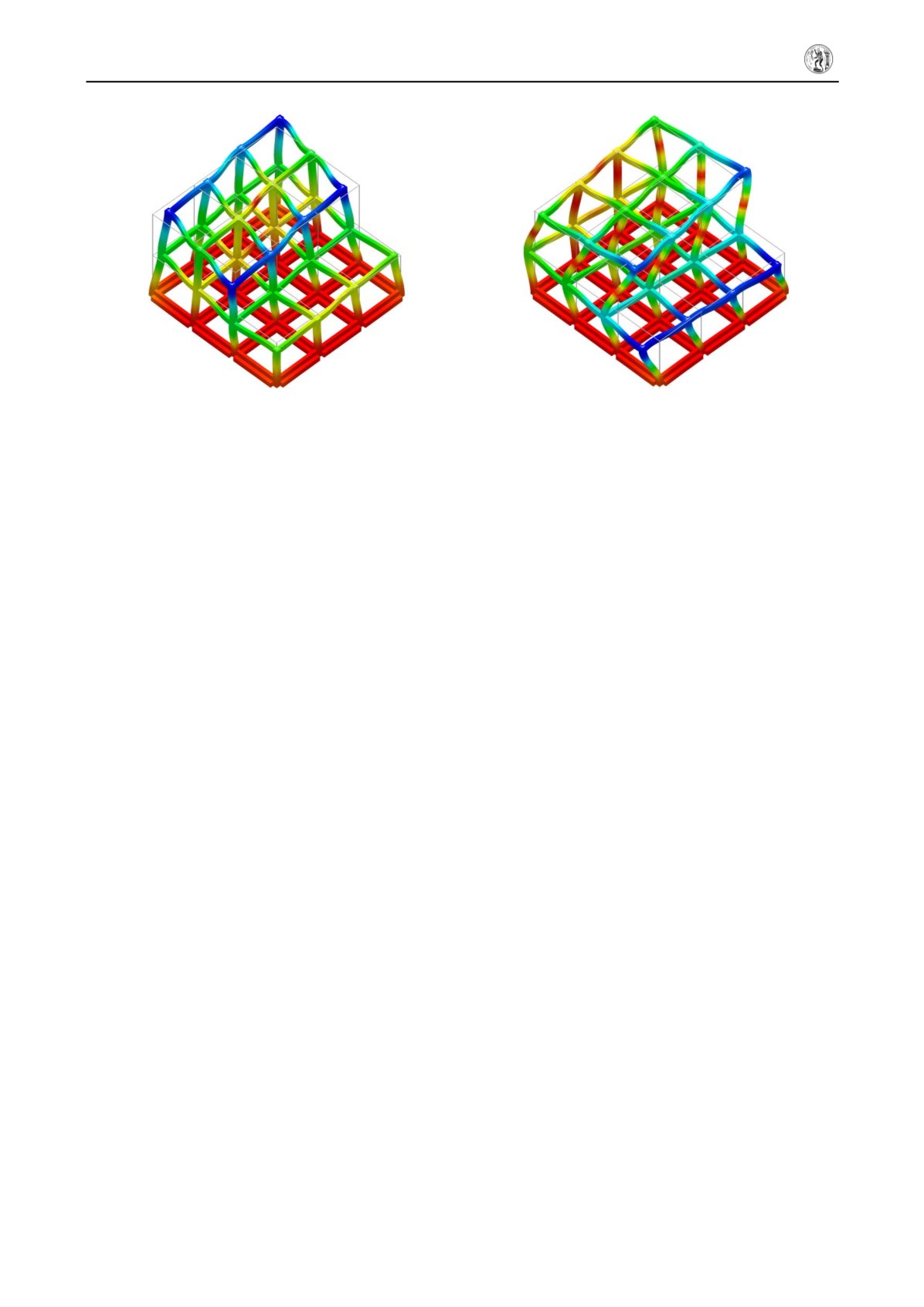

Figure 2.5.5. 4
th
Eigenmode without and with diaphragms according to ScadaPro.
Computer Files
The project files for this example are “FF5_withD” & “FF5_withoutD”. These files are
provided as part of the ScadaPro installation.
Conclusion
The result comparison reflects acceptable agreement between ScadaPro software and results
obtained from Sap2000 and Etabs.
