24 / 66
Software Verification Examples for SCADA Pro
24
ScadaPro
Sap2000
Abaqus

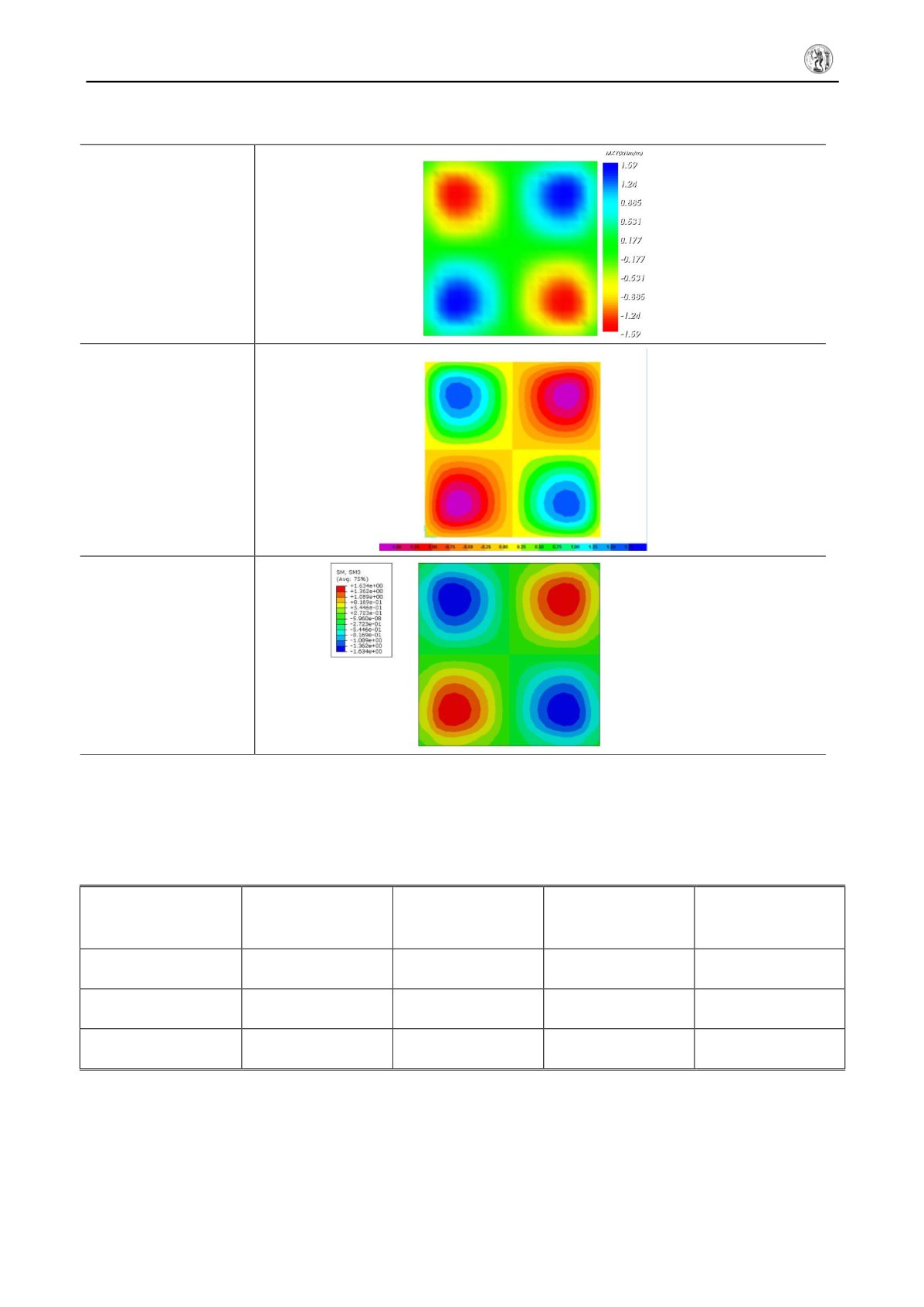

Figure A3.1.3. Twisting moment Mxy (kNm/m) for Load Case 1 according to ScadaPro,
Sap2000 and Abaqus Analysis.
Table A3.1.1. Comparison of Results for Vertical Displacements.
Vertical
Displacement (mm)
at
ScadaPro
Sap2000
Abaqus
Exact Solution
center
point of
plate (Load Case 1)
0.274
0.277
0.282
0.274
center point of
plate (Load Case 2)
0.878
0.882
0.919
0.882
center point of
plate (Load Case 3)
2.495
2.500
2.570
-
