Software Verification Examples for SCADA Pro
31
Table A4.1.1. Comparison of Results for Displacements.
ScadaPro
Sap2000
Abaqus
maximum inplane
displacements (mm)
0.0335
0.0347
0.0348
Table A4.1.2. Comparison of Stresses at point B.
ScadaPro
Sap2000
Abaqus
σxx (kN/m
2
)
10.38
10.35
10.37
σyy (kN/m
2
)
40.97
41.08
40.93
σxy (kN/m
2
)
4.12
4.35
4.09
ScadaPro
Sap2000
Abaqus

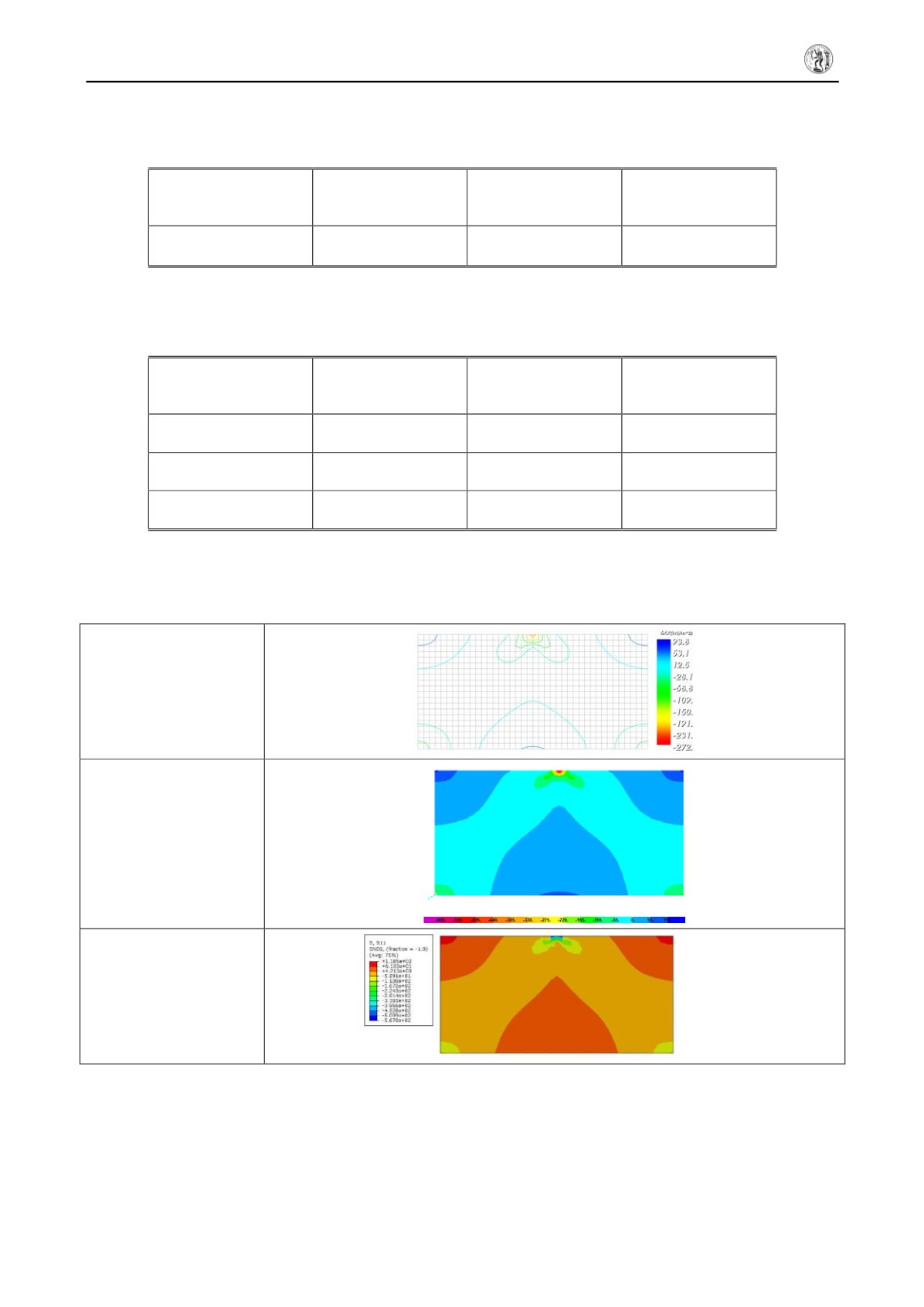

Figure A4.1.2. Stresses σxx (kN/m
2
) according to ScadaPro, Sap2000 and Abaqus Analysis.
