Software Verification Examples for SCADA Pro
34
Results Comparison
Horizontal displacements obtained from ScadaPro analysis are presented in Table A4.2.1
and compared with those obtained from Sap2000 and Abaqus software. Moreover, in
Figures A4.2.2- A4.2.4 contourlines of stresses σxx, σyy and σxy are presented.
Table A4.2.1. Comparison of Results for Displacements.
ScadaPro Sap2000 Abaqus
Horizontal
Displacement (mm)
at node A
0.283 0.281 0.286
ScadaPro
Sap2000
Abaqus

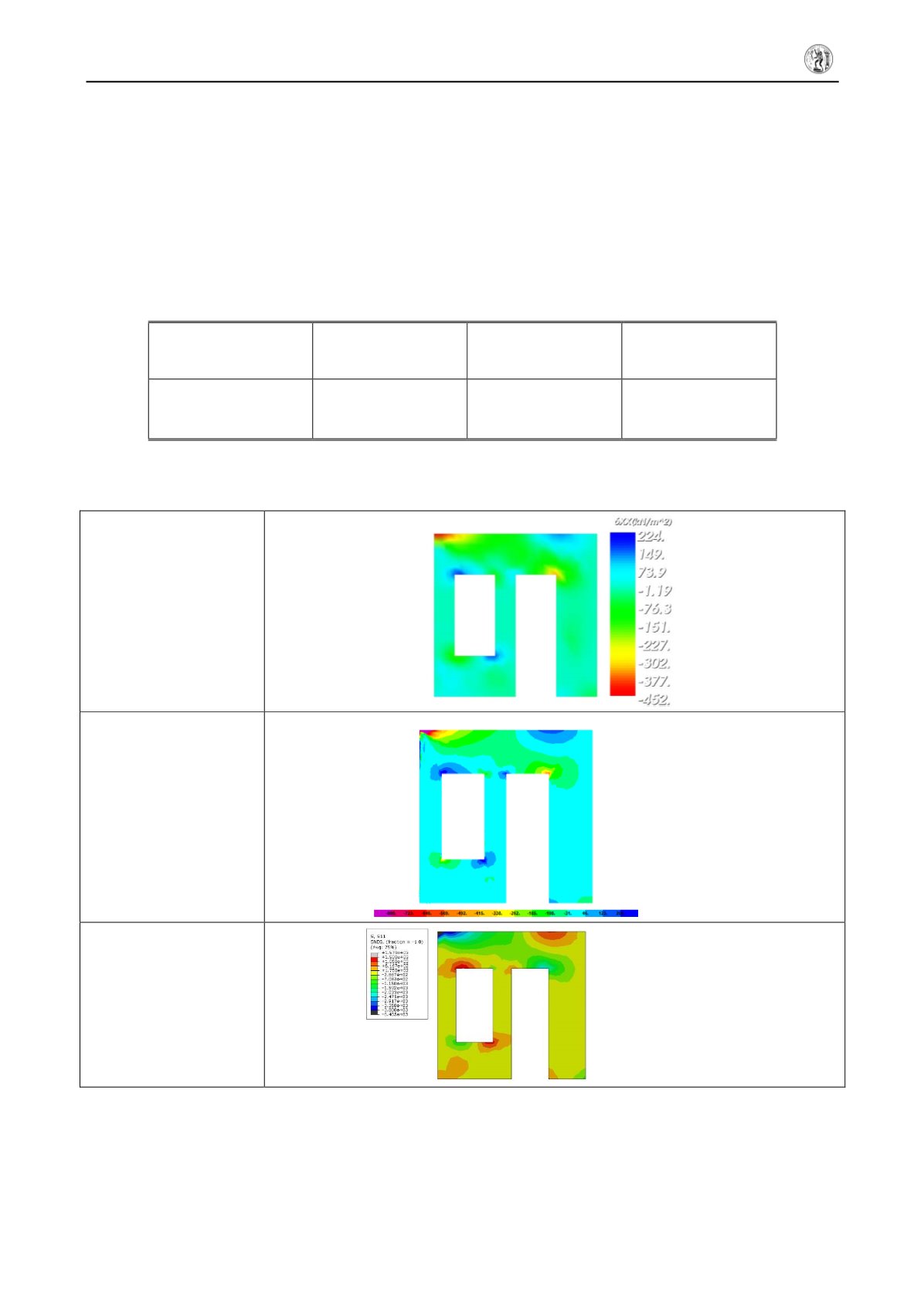

Figure A4.2.2. Stresses σxx (kN/m2) according to ScadaPro, Sap2000 and Abaqus Analysis.
