A4.2. Wall with Hollows
Problem Description
A two dimensional disk, subjected to inplane loading is examined (Figure A4.2.1).
Geometry, Properties and Loads
The plate of polygon shape has 25cm thickness and is subjected to a horizontal concentrated
load of 50kN. Modulus of elasticity is 29GPa and Poisson Ratio is 0.20. Finally, the
boundary at the base of the disk is fixed.
(576 Shell Finite Elements)

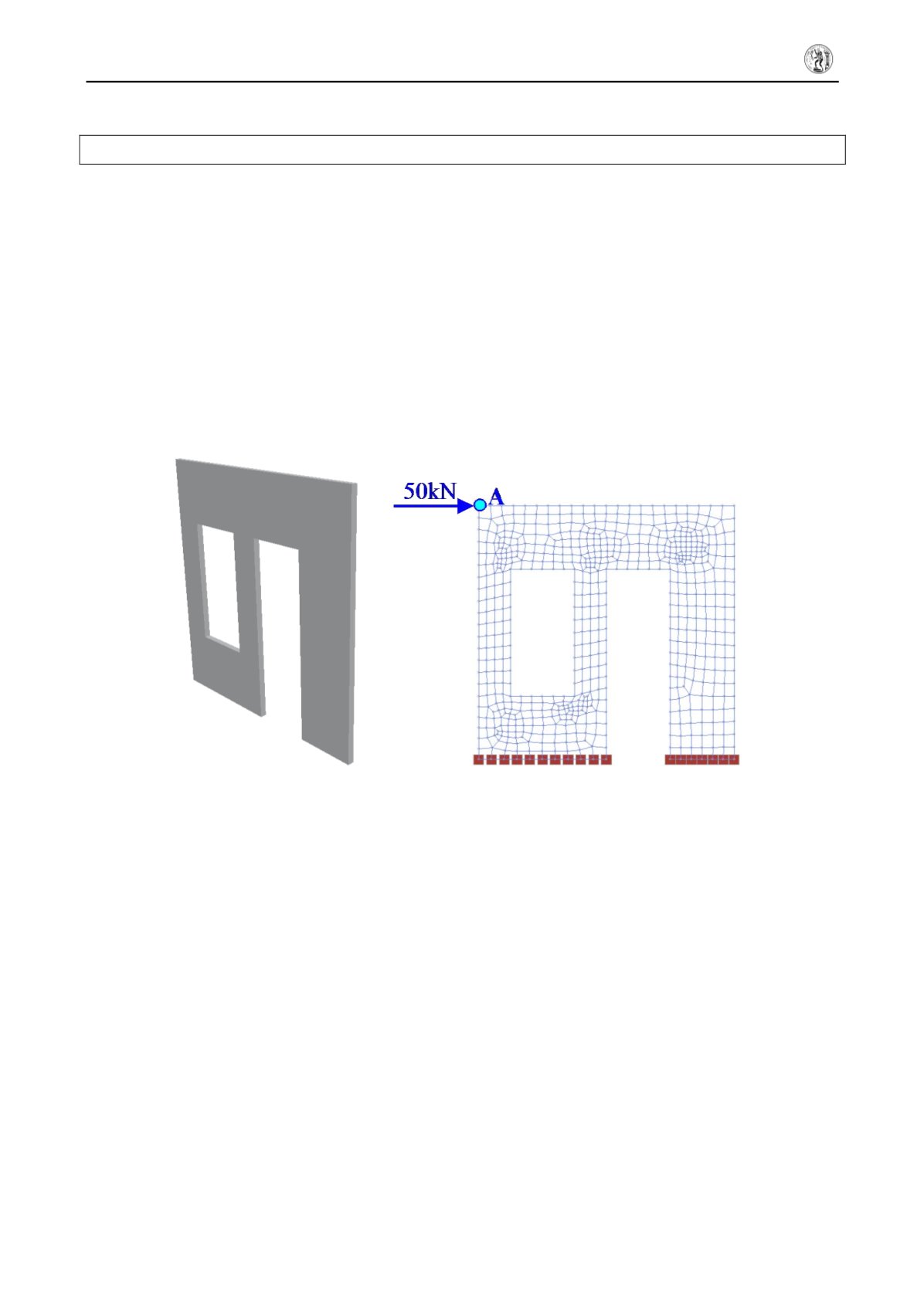

Figure A4.2.1. Wall with hollows.
Assumptions
During analysis, theory of discs (plates under inplane loading) has been adopted.
Technical Features in ScadaPro Tested
Plate elements under inplane loading
Fixed boundary conditions
