Results Comparison
Vertical displacements due to combination Comb1 and bending moments, reinforcement
due to combination Comb2 obtained from ScadaPro analysis are presented in Tables B2.2.1
÷ B2.2.3 respectively, and compared with those obtained from Sofistik and Cedrus-5
software. Moreover, in Figures B2.2.2 ÷ B2.2.3 contour lines of top and bottom transverse
reinforcement respectively, are presented for all of the aforementioned software.
ScadaPro
Sofistik
Cedrus-5

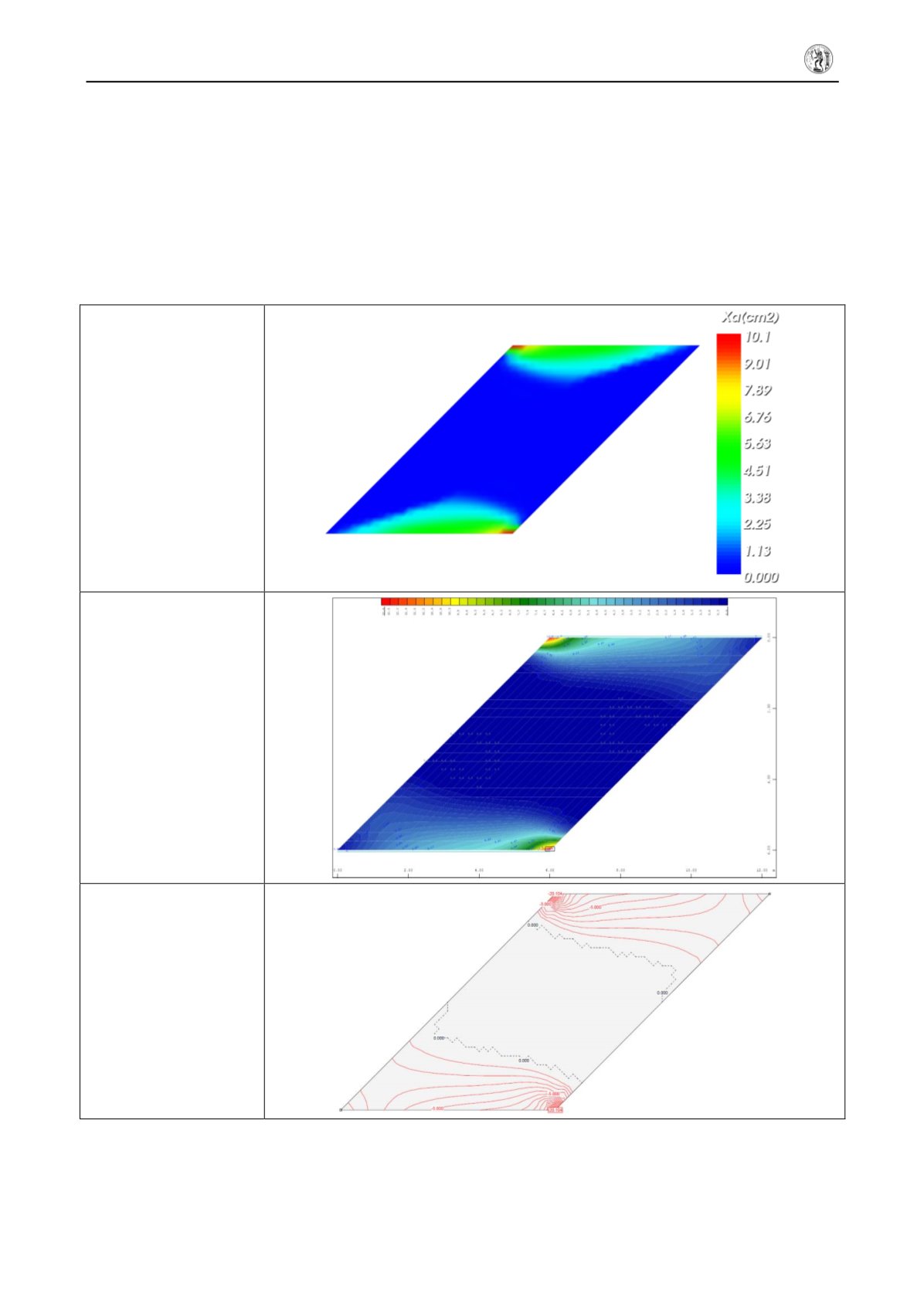

Figure B2.2.2. Top transverse reinforcement Xα (cm
2
/m) according to ScadaPro, Sofistik
and Cedrus-5 software (Comb2).
