Software Verification Examples for SCADA Pro
7
A2. Static / Dynamic Analysis of Frame Structures
A2.1. Steel beam under torsional loading
Problem Description
A cantilever beam, subjected to concentrated torsional moment at its free end is examined
(Figure A2.1.1).
Geometry, Properties and Loading
The cantilever beam of length L=4.0m has a cross section of IPE-100. Modulus of elasticity
of the material is 210GPa and Poisson ratio is 0.30. The applied torsional moment at the
beam’s free end is Mt=10kNm.

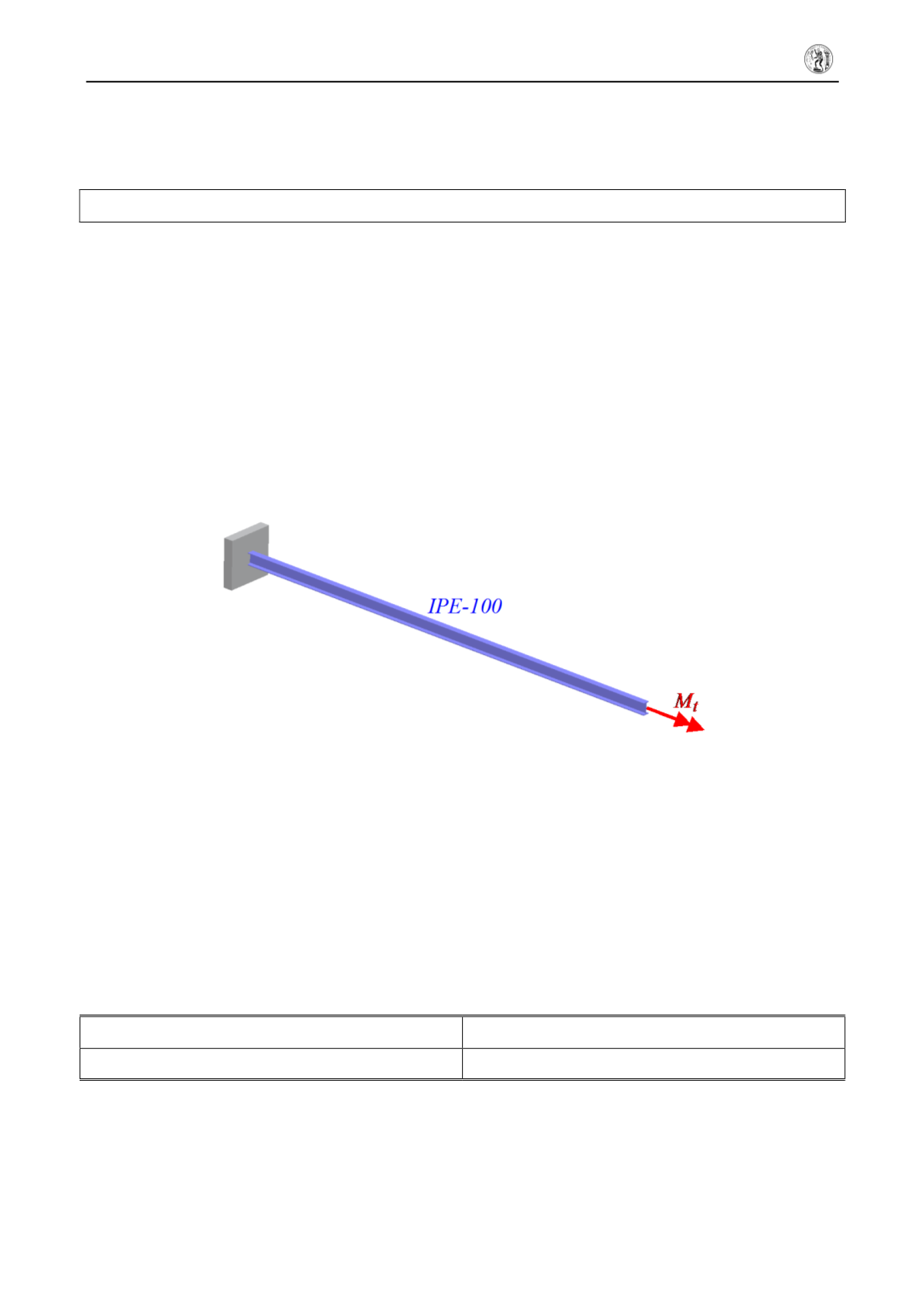

Figure A2.1.1. Steel beam under torsional loading.
Assumptions
Section properties are automatically recovered from cross section library of ScadaPro and
are presented in Table A2.1.1. Concerning analysis with Sap2000 and Abaqus software,
section properties of ScadaPro library are used for comparison reasons.
For the analysis, Saint Venant theory is employed.
Table A2.1.1. Cross section properties of IPE-100.
3 2
1.032 10
A
x m
−
=
6 4
1.710 10
y
I
x m
−
=
8 4
1.202 10
x
I
x m
−
=
7 4
1.592 10
z
I
x m
−
=
Technical Features in ScadaPro Tested
One – dimensional analysis of beam elements
