Software Verification Examples for SCADA Pro
64
(including self-weight)
(
a
)
(
b
)

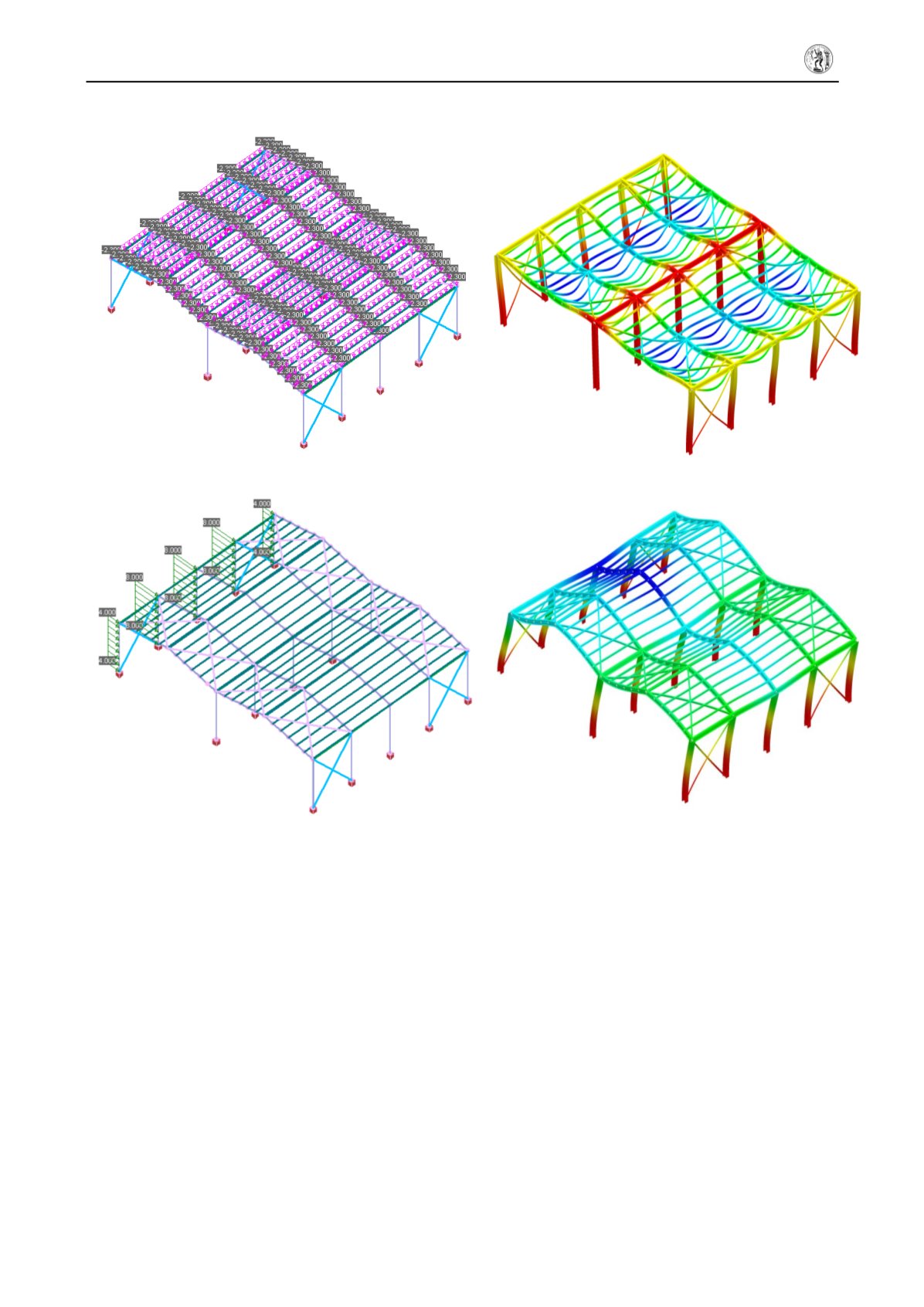

Figure B3.2.2. Permanent (a) and variable (b) distributed load and corresponding deflection
lines of the frame structure.
Computer Files
The project file for this example is “B6”. These files are provided as part of the ScadaPro
installation.
Conclusion
The result comparison reflects acceptable agreement between ScadaPro software and results
obtained from Sofistik.
