Software Verification Examples for SCADA Pro
57
(maxMz: 912.3kNm/-405.5kNm)

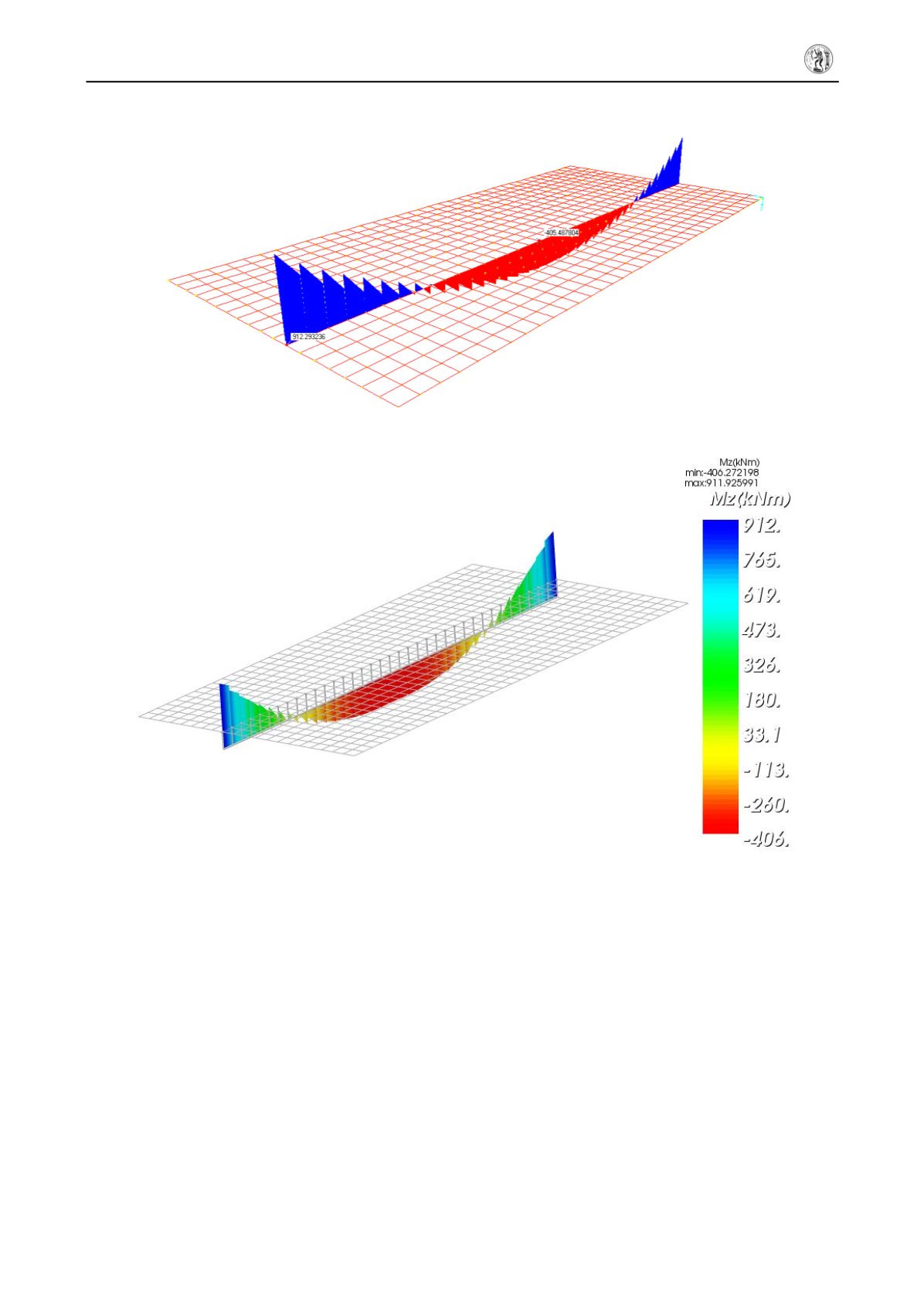

Case1: SAP2000
(maxMz: 911.9kNm/-406.3kNm)
Case1: ScadaPro
Figure B2.4.4. Bending moments of the beam for
b
h 1.0m
=
(Case1).
Computer Files
The project files for this example are “B4_H50”, “B4_H100”, “B4_H150”, “B4_H200”.
These files are provided as part of the ScadaPro installation.
Conclusion
The result comparison reflects acceptable agreement between ScadaPro software and results
obtained from SAP2000, Nastran and the structural model presented by Sapountzakis and
Mokos in [18].
